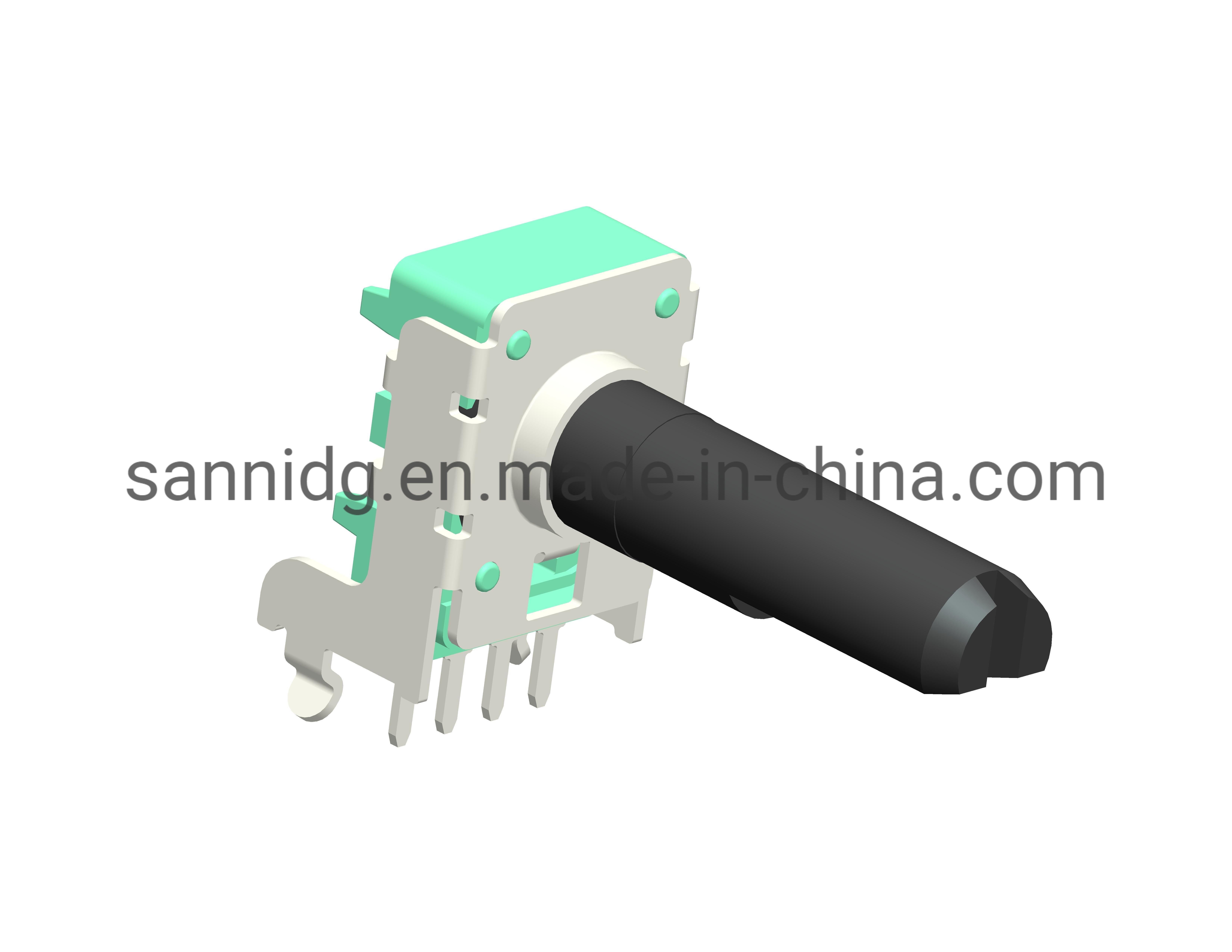

9mm Rotary Adjustable Resistor Featuring Shaft Diameter 6mm or Customized Ideal for Circuit Tuning and Electronic Equipment

Product Description:

The Rotary Potentiometer is a versatile and reliable component designed for a wide range of applications requiring precise control of electrical resistance. Known for its durability and consistent performance, this device operates effectively within a temperature range of -25℃ to 85℃, making it suitable for use in various environmental conditions. Whether you are working on consumer electronics, industrial machinery, or automotive systems, this rotary multi-turn potentiometer offers exceptional functionality and adaptability.

One of the standout features of this rotary potentiometer is its impressive rotational life, rated for up to 10,000 cycles. This longevity ensures that the device maintains accurate and stable resistance adjustment over extended periods of use, reducing the need for frequent replacements and maintenance. The robust design and high-quality materials contribute to its durability, making it an ideal choice for applications where long-term reliability is critical.

The rotary linear variable resistor function of this potentiometer allows for smooth and precise resistance variation, essential for fine-tuning electronic circuits. This capability makes the device invaluable in settings where accurate control of voltage or current is necessary, such as in audio equipment, instrumentation, and control systems. With a resistance tolerance of ±20%, the potentiometer maintains consistent performance while accommodating minor manufacturing variances, ensuring dependable operation within specified parameters.

Power handling is another important aspect of this rotary analog adjustment device. With a power rating of 0.05W, it is optimized for low-power applications, providing efficient resistance adjustment without excessive heat generation. This power rating aligns well with the needs of sensitive electronic circuits, allowing designers to implement reliable control mechanisms without compromising system integrity.

The shaft type options available for this rotary potentiometer include round, flat, and knurled designs. This variety allows users to select the most suitable shaft profile for their specific application, enhancing ergonomic handling and integration into different mechanical setups. Whether the requirement is for smooth rotational control or a secure grip for manual adjustments, the shaft designs offer flexibility and ease of use.

As a rotary multi-turn potentiometer, this product excels in scenarios requiring multiple revolutions to cover the entire resistance range, providing finer resolution and greater control precision. This feature is particularly beneficial in applications where small incremental adjustments are necessary, such as tuning circuits or setting calibration points. The multi-turn capability ensures that users can achieve the exact resistance values needed without overshooting or abrupt changes.

Additionally, the device functions effectively as a rotary linear variable resistor, translating rotational movement into linear changes in resistance. This characteristic is vital for analog adjustment devices where smooth and predictable resistance variation is required. The linear response curve ensures that the output changes proportionally to the shaft rotation, simplifying the design of control systems and improving overall accuracy.

In summary, this rotary potentiometer combines robust construction, precise resistance control, and flexible design options to deliver a high-quality solution for numerous electronic and electrical applications. Its operating temperature range of -25℃ to 85℃, long rotational life of 10,000 cycles, resistance tolerance of ±20%, and power rating of 0.05W make it a dependable choice for engineers and designers. The availability of round, flat, and knurled shaft types further enhances its versatility, allowing seamless integration into a variety of devices.

Whether you need a rotary multi-turn potentiometer for detailed calibration, a rotary linear variable resistor for smooth analog adjustments, or a reliable rotary analog adjustment device for general resistance control, this product meets and exceeds expectations. Its combination of performance, durability, and adaptability ensures that it will serve as an essential component in your electronic design projects for years to come.

Features:

• Product Name: Rotary Potentiometer
• Type: Rotary Linear Variable Resistor
• Also Known As: Rotary Variable Resistor and Rotary Voltage Divider Potentiometer
• Mounting Type: Through Hole/DIP Mount
• Rotational Life: 10,000 Cycles
• Insulation Resistance: 100MΩ Minimum
• Terminal Type: PCB Lug
• Dielectric Strength: 500VAC

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer, originating from Dongguan, China, is a highly reliable and versatile rotary electrical potentiometer designed for a wide range of application occasions and scenarios. With a robust rotational life of 10,000 cycles, this rotary manual adjustment tool ensures consistent performance and durability in various environments. Its resistance range, from 300Ω to 3MΩ, allows it to be tailored for precise control in numerous electronic devices and systems.

One of the primary application occasions for the SANNI rotary potentiometer is in audio equipment, where it serves as a rotary linear variable resistor to adjust volume, tone, and balance smoothly and accurately. This makes it ideal for use in professional audio mixers, amplifiers, and home audio systems. The potentiometer’s ability to provide fine-tuned manual adjustments enhances user experience and device functionality.

In industrial settings, the SANNI rotary potentiometer is employed as a control interface for machinery and instrumentation. Its operating temperature range of -25℃ to 85℃ ensures reliable operation even in harsh or fluctuating environmental conditions. The insulation resistance of 100MΩ minimum guarantees electrical safety and stability, making it suitable for precision control in automation equipment, testing devices, and measurement instruments.

Moreover, the potentiometer’s shaft length, which can be customized between 6mm and 20mm, allows easy integration into various panel designs and user interfaces. This adaptability makes it a preferred choice for consumer electronics such as radios, televisions, and household appliances, where ergonomic manual adjustment is essential. Its compact size and customizable features also make it suitable for use in automotive dashboards and control panels.

In summary, the SANNI rotary electrical potentiometer is a dependable rotary manual adjustment tool that excels in applications requiring precise variable resistance control. Whether used as a rotary linear variable resistor in audio equipment, industrial controls, or consumer electronics, its high-quality construction, resistance range, and operational resilience make it an excellent component for enhancing device performance and user control.

Customization:

At SANNI, we offer customized Rotary Voltage Divider Potentiometer solutions tailored to meet your specific requirements. Our Rotary Voltage Divider Potentiometer is manufactured in Dongguan, China, ensuring high quality and reliability. With a resistance tolerance of ±20% and a compact dimension of 9mm, our potentiometers provide precise control for your applications.

We provide various shaft types including round, flat, and knurled to suit different mechanical needs. The resistance range of our Rotary Adjustable Resistor spans from 300Ω to 3MΩ, allowing for versatile use across multiple electronic devices. Additionally, our potentiometers feature a power rating of 0.05W, making them ideal for low-power applications.

Choose SANNI for customized Rotary Voltage Divider Potentiometer products that combine accuracy, durability, and flexibility to enhance your electronic designs.

Support and Services:

For technical support and services related to Rotary Potentiometers, please refer to the product datasheet and user manual provided with your purchase. Our support team is available to assist with installation guidance, troubleshooting, and maintenance tips to ensure optimal performance of your rotary potentiometer.

We offer calibration services and replacement parts to extend the lifecycle of your device. If you experience any issues with your rotary potentiometer, verify the wiring and connections first, and consult the troubleshooting section of the manual.

Additional resources such as FAQs, application notes, and software tools can be accessed on our official website to help you get the most out of your rotary potentiometer.

Please ensure that all handling and usage follow the recommended specifications to avoid damage and ensure accurate readings. For further assistance, refer to the warranty terms and service options available.

Packing and Shipping:

Product Packaging: Each Rotary Potentiometer is carefully packed in an anti-static bag to prevent any damage from electrostatic discharge during handling and transportation. The product is then placed in a sturdy cardboard box with adequate cushioning materials to protect it from shocks and vibrations. For bulk orders, multiple units are securely packed in larger boxes with clear labeling for easy identification.

Shipping: We offer reliable shipping options worldwide, including standard and expedited services. All orders are processed within 1-2 business days after payment confirmation. Shipments are tracked and insured to ensure safe delivery. Customers will receive a tracking number once the product has been dispatched. We package our Rotary Potentiometers to withstand various shipping conditions, ensuring that the product arrives in perfect working condition.
